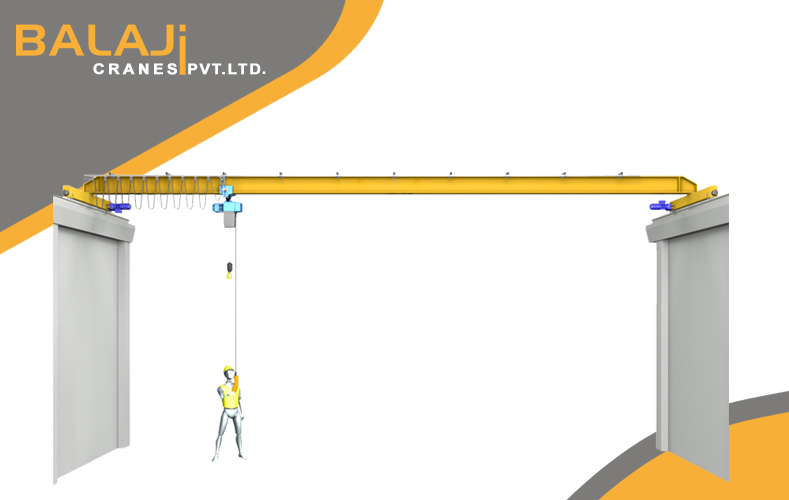

SINGLE GIRDER OVERHEAD CRANES

Manufactures Single Girder Cranes in different configuration : I-Beam type with auxiliary girder/box type. Each configuration can be provided with twin/central drive. Decision regarding the configuration is made depending upon the shed dimensions and lifting requirements of the client, the cranes can be offered either with an Electrically Operated Trolley (EOT) or a Hand Operated Trolley (HOT) again dependent upon the client needs and budget. Electric Wire Rope Hoist are used on these cranes.

Range of Specifications

Safe Working Load Starting from 0.5 TON to 250 TON For DOUBLE GIRDER CRANES.
Starting from 0.5 TON to 15 TON For SINGLE GIRDER CRANES.
Heights of Lift As per customer specifications.
Class of Duty/ Standards M1, M2, M3, M4, M5, M6, As per IS 3177 / IS 3938 / IS 807.- 2008.
Speeds Selected depending on client specifications / applications / shed dimensions.
Multiple speed can be provided for each motion through VVE drive / Mechanical means.
Crane Control From floor through Pendant Push Buttons / Open Cabin / Totally Enclosed Cabin / Radio Remote Control.
Drive System Single / Twin drive with Squirrel Cage / Slip ring Induction Motors, through Totally enclosed, oil immersed, helical gearboxes.
Motors Foot mounted, lEG Frame Size, Crane Duty motors for Main Hoisting, Auxiliary Hoisting, Cross travel and Long travel.
Brakes Electro hydraulic Thruster brakes for all motions. DC/AC Electro Magnetic Brakes or additional can be provided on request.
Power Supply System To Hoist and Cross Travel through Trailing Cables / Shrouded Conductors. To Crane through Trailing Cable / MS Angle Iron Conductors / G.l. Shrouded Bus Bar System (depending on customer’s choice.)
